McIntosh C 70 AC

2-Kanal Röhren-Vorverstärker
All analog design and a retro look
(5) 12AX7A and (1) 12AT7 vacuum tubes
Moving Coil and Moving Magnet phono inputs
Versand: lagernd
Geschäft: 2-4 Tage
9.980,00 € / Stk.
Informationen anfragen
Nur im Geschäft bestellbar
    Ihr Vorteils-Paket
    Gratisversand für Deutschland und Österreich
    Dein HeimkinoWelt BONUS
    Fachhandels-Beratungs-Hotline +
    +43(0)1 6982317 +
    Produktberatung per E-Mail +
    Installations- und Lieferservice +
    Hilfestellung bei Garantieabwicklung +
    mehr als 20 Jahre Erfahrung +
    Details

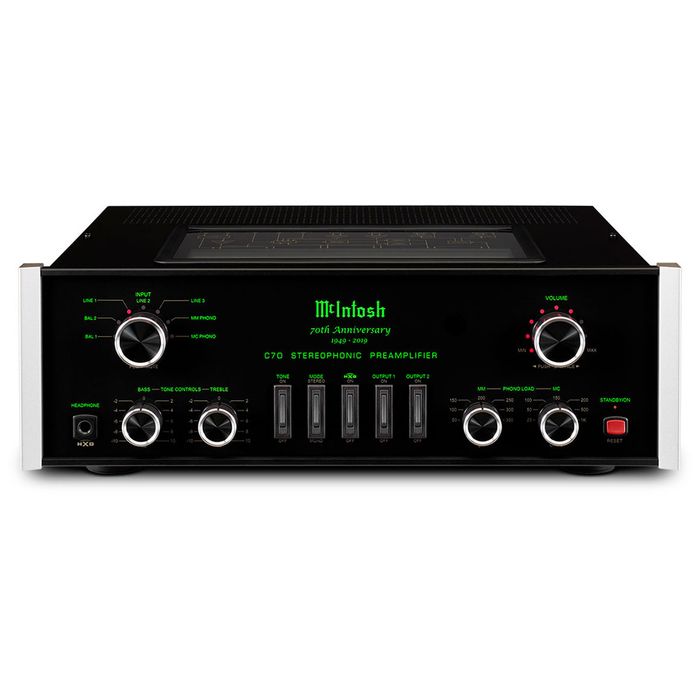

    The C70 70th Anniversary Vacuum Tube Preamplifier harkens back to yesteryear with an all analog design and a retro look. The glass front panel is inscribed with special McIntosh 70th Anniversary lettering.
    The C70 features one 12AT7 and five 12AX7A vacuum tubes that are visible through a glass panel on the top cover. All control operations are done via knobs and rocker switches. Modern LED indicators will denote input selection and volume level. The C70 has seven inputs consisting of two balanced inputs, three unbalanced inputs, and one each of Moving Coil and Moving Magnet phono inputs. For outputs, there are two pairs each of balanced and unbalanced connections.
    "What ever I played the McIntosh duo threw it into our room with stunning clarity and shocking power... the C70 and MC2152 are truly amazing – a visual and audible display like no other." Awarded 5 out of 5 Globes. – Hi-Fi World
    On the front panel, bass and treble tone controls are included and can be adjusted in 2dB increments via rotary knobs. Rotary knobs are also used to adjust the impedance and capacitance for the phono inputs. In addition to controlling the listening level, the volume knob can also adjust the relative volume balance between the left and right audio channels. A ¼” headphone jack powered by our High Drive headphone amplifier is included and features our Headphone Crossfeed Director (HXD®) technology. HXD brings added dimension to your music in a natural sounding way but can be turned off depending on your preferences. Five rocker switches are used to control the following functions: tone control on/ off; change between mono and stereo mode; HXD on/off; and to turn the independent output 1 and output 2 on/off.
    The C70 sits atop a beautiful polished stainless steel chassis and features the timeless McIntosh black glass front panel, illuminated logo, control knobs, and aluminum end caps. Our Power Control technology is included with four ports that can automatically turn other connected McIntosh components such as amplifiers, CD players or turntables, on and off. Data ports are also present and can control basic functions of connected McIntosh source components via the C70’s remote control. Contact your local dealer to learn more.

    Technische Daten
    Number of Channels 2
    Total Harmonic Distortion 0.08%
    Frequency Response +0, -0.5dB from 20Hz to 20kHz
    +0, -3dB from 15Hz to 100kHz
    Maximum Volts Out (Balanced / Unbalanced) 16V RMS / 8V RMS
    Sensitivity High Level (Balanced / Unbalanced) 900mV / 450mV
    Sensitivity Phono (Moving Coil) 0.45mV
    Sensitivity Phono (Moving Magnet) 4.5mV
    Signal To Noise Ratio (High Level) 100dB
    Signal To Noise Ratio (Moving Coil) 75dB
    Signal To Noise Ratio (Moving Magnet) 75dB
    Voltage Gain (High Level) 15dB
    Voltage Gain (Moving Coil) 60dB
    Voltage Gain (Moving Magnet) 40dB
    Input Impedance (Balanced / Unbalanced) 44K ohm, 22K ohm
    Balanced Input 2
    Unbalanced Input 3
    Phono Input Moving Coil 1 (adjustable)
    Phono Input Moving Magnet 1 (adjustable)
    Upgradeable Digital Audio Module No
    Digital Coaxial Input 0
    Digital Optical Input 0
    Digital MCT (DIN) Input 0
    Digital USB Input 0
    HDMI (ARC) Input 0
    Digital AES/EBU Input 0
    Balanced Fixed Output 0
    Balanced Variable Output 2
    Unbalanced Fixed Output 0
    Unbalanced Variable Output 2
    Headphone Output 1/4" High Drive with Headphone Crossfeed Director (HXD>®)
    Input Level Match No
    Home Theater PassThru No
    Unbalanced Analog Connector Type Premium gold-plated solid brass
    Service Port 0
    Tone Controls Bass and Treble
    Tone Bypass and Input Assign Tone Bypass: Yes
    Input Assign: No
    RS232 Control Input No
    Power Control Output 2 Main, 2 Switched
    Rear Panel Data Port 5
    Rear Panel IR Sensor Input Yes
    Multi-Chassis or Single Single, two layer
    Output Meters No
    Vacuum Tube or Solid State Vacuum Tube: (5) 12AX7A and (1) 12AT7
    Power Consumption (On) 50 Watts
    Dimensions (W x H x D) 17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
    Weight 25 lbs (11.3kg)
    Shipping Weight 41.4 lbs (18.8kg)
