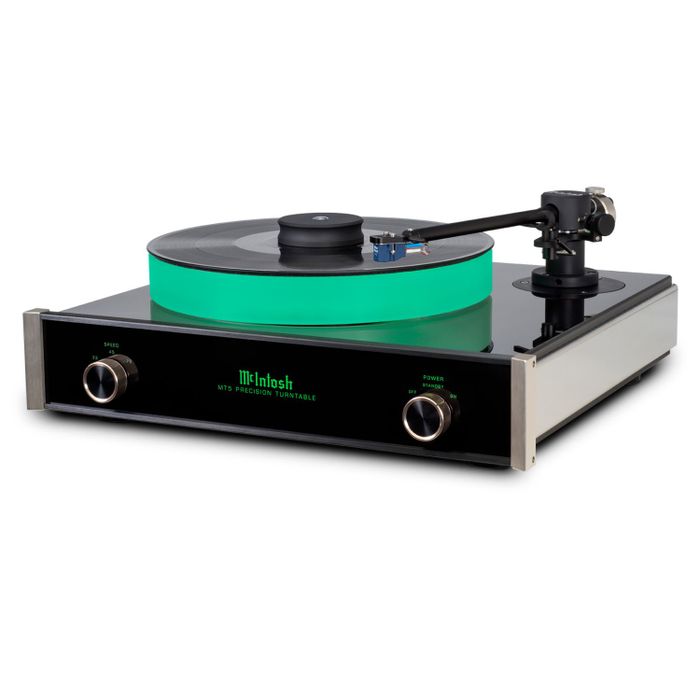

The McIntosh MT5 precision turntable is a complete turntable package that is
more than the sum of its parts. Engineered to exacting McIntosh standards, each
piece contributes to deliver a superb performance.
MT5 comes equipped with a high performance platter and motor drive assembly,
precision tone arm and a high output moving coil cartridge that is also
compatible with moving magnet inputs. The illuminated, magnetically suspended
platter produces an inviting glow that's sure to be a conversation starter among
friends and guests alike.
MT5 is factory adjusted for perfect playback. Tracking force, anti-skate force,
cartridge overhang and arm height are all preset for maximum performance.
Advanced magnetic platter bearings and a precise belt drive motor spins records
with absolute stability and quiet, assuring a pleasurable vinyl listening
experience. The custom tone arm and matching moving coil cartridge track records
with minimum friction using magnetic antiskate and horizontal, tone-arm bearings.
While the construction of the MT5 is meticulous, the setup is simple. In a few
easy steps, you’ll be ready to enjoy your favorite vinyl recordings.
While maintaining complementary McIntosh styling, the MT5 takes full advantage
of the chassis materials used to suppress noise, resonance and coloration so the
only sound produced is that which is on your records. A clear, form-fitting dust
cover is included to protect the MT5's moving parts, along with your valued
records. The MT5 turntable is compatible with any McIntosh stereo preamplifier
and is a great piece to complete your two-channel stereo system.
CARTRIDGE SPECIFICATIONS | |
CARTRIDGE TYPE | Moving Coil, High Output |
OUTPUT LEVEL | 2.5 mV at 5 cm/s |
LOAD IMPEDANCE | 1000 Ohms recommended (Preamp MC Input) |
FREQUENCY RESPONSE | 20Hz to 50kHz |
CHANNEL SEPARATION | 35dB at 1kHz |
COMPLIANCE | 15 x 10-6 cm/dyne |
RECOMMENDED TRACKING FORCE | 2.0 g |
CHANNEL DIFFERENCE | Less than 0.5 dB at 1kHz |
TOTAL MASS | 6.3 g |
STYLUS | Elliptical Diamond |
CANTILEVER MATERIAL | Aluminum |
TONEARM SPECIFICATIONS | |
BEARING | Magnetic Sapphire and Ceramic |
ARM TUBE | Dural-Aluminum |
COUNTERWEIGHT | Eccentric |
ADJUSTMENTS | Magnetic |
TURNTABLE SPECIFICATIONS | |
PLAYBACK SPEEDS | 33 1/3, 45 and 78 rpm |
MOTOR TYPE | DC Motor with Stainless Steel Brushes |
SPEED CONTROL | Servo System |
PLATTER | Silicon Acrylic |
PLATTER BEARING | Magnetic Suspended Ceramic |
CONNECTIVITY | |
STEREO OUTPUTS UNBALANCED | 1 |
CONTROL | |
POWER CONTROL INPUT | Yes |
POWER CONTROL OUTPUT | Yes |
PLATTER LIGHT | Yes |
SPEED CONTROL FINE ADJUSTMENT | Yes |
GENERAL SPECIFICATIONS | |
DUST COVER | Yes |
WEIGHTS & DIMENSIONS | |
DIMENSIONS (W X H X D) | 17-1/2" (44.45cm) x 7" (17.8cm) (7-1/2" (19.0cm) with dust cover) x 19" (48.26cm) |
DIMENSIONS (W X H X D) | Note: Tone Arm Height will vary depending on the type of Cartridge installed. |
WEIGHT | 31.5 lbs (14.3 kg) |
SHIPPING WEIGHT | 38 lbs (17.2 kg) |
