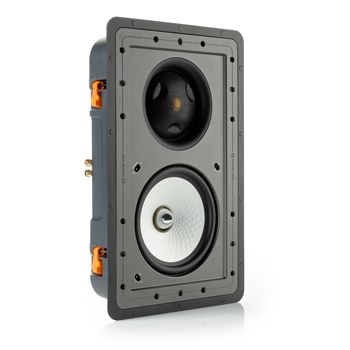

Monitor Audio CP WT380 IDC
Einbaulautsprecher
3-Weg, 1 x 1" C-CAM Goldkallotenhochtöner, 1 x 4" C-CAM Mitteltöner, 1 x 8" C-CAM Bassbtreiber
Auf Lager
SKU
18154
Ihr Vorteils-Paket
Gratisversand für Deutschland und Österreich
Dein HeimkinoWelt BONUS
Fachhandels-Beratungs-Hotline +
+43(0)1 6982317 +
Produktberatung per E-Mail +
Installations- und Lieferservice +
Hilfestellung bei Garantieabwicklung +
mehr als 20 Jahre Erfahrung +
+43(0)1 6982317 +
Produktberatung per E-Mail +
Installations- und Lieferservice +
Hilfestellung bei Garantieabwicklung +
mehr als 20 Jahre Erfahrung +
Details
Der Drei-Wege-Lautsprecher CP-CT380IDC umfasst das innovative, schwenkbare Inverted Dual Concentric (IDC)-Mittel-/Hochtönermodul von Monitor Audio und einen 8" RST C-CAM-Tieftöner – damit stellt er das höchste Niveau an neuer CP-Leistung dar.
Technische Daten
| Frequency Response: | 50 Hz - 30 kHz |
| Impedance (Nominal): | 6 ohms |
| Sensitivity (1W@1M): | 89 dB |
| Maximum SPL | 109.6 dBA |
| Power Handling (RMS): | 120 W |
| Recommended Amp Requirements: | 30 - 120 W |
| Crossover Frequency / Slope | Bass low pass: 300 Hz @ 6 dB / Octave |
| Crossover Frequency / Slope | Mid: 300 Hz @ 6 dB / Octave |
| Crossover Frequency / Slope | & 3 kHz @ 12 dB / Octave |
| Drivers Unit Complement | 3-Way |
| Drivers Unit Complement | 8˝ C-CAM® RST® cone bass driver |
| Drivers Unit Complement | 4˝ C-CAM IDC® cone mid range driver |
| Drivers Unit Complement | 1˝ C-CAM gold dome tweeter |
| Drivers Unit Complement | (tweeter & midrange driver combined in a pivoting module) |
| Adjustment Controls | HF Level Switch |
| Adjustment Controls | ( +3dB / 0dB / -3dB ) |
| Adjustment Controls | MF Level Switch |
| Adjustment Controls | (+3dB/ 0dB/ -3dB) |
| Adjustment Controls | Boundary Compensation Switch |
| Overall Dimensions: | 472.5 x 303.5 mm |
| (including grille) (H x W) | (18 5/8 x 11 15/16 inches) |
| Overall Depth: | 106 mm |
| (including grille) | (4 3/16 inches) |
| Cut Out Dimensions: | 438 x 269 mm |
| (H x W) | (17 1/4 x 10 9/16 inches) |
| Mounting Depth: | 99 mm |
| Mounting Depth: | (3 7/8 inches) |
| Fixing Type: | 6 position Tri-Grip® dog leg fixings |
| Construction Material: | Mineral Filled ABS Plastic |
| Construction Material: | (RoHS2 Compliant) |
| Pre-Construction Bracket: | WB10 (Light Brown) |
| Weight: | 5.62kg (12lb 6oz) |
