Russound BSK-1

Bluetooth Empfänger
Bluetoothkit: Receiver BTC-1 und Tranceiver Box BTC-1X, verbunden durch max 100m Cat5, ADP2 Bluetooth tauglich, 12 Volt Trigger
Außenlager: anfragen
Geschäft: anfragen
299,00 € / Stk.
Informationen anfragen
Nur im Geschäft bestellbar
Fachhandels-Beratungs-Hotline +
+43(0)1 6982317 +
Produktberatung per Mail +
Installations- und Lieferservice +
Hilfestellung bei Garantieabwicklung +
mehr als 16 Jahre Erfahrung +

Bluetooth Source Kit BSK-1

The BSK-1 Bluetooth® Source Kit enables a portable media player, smartphone, or other device equipped with Bluetooth wireless technology to transmit audio content to any multiroom audio system.

The BSK-1 kit can be used as a global source for system-wide access, or as a Local Source for independent use by a specific room when used with a C-Series system. Local source use with C-Series controllers provides additional automation features automatically turning on the audio, selecting the BSK-1 source input and setting the volume in a room configured as the 'Primary Zone' via SCS-C5 software.

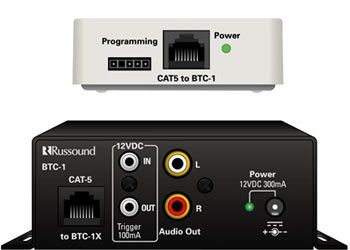

The BTC-1x Remote Transceiver is wired with a single CAT-5 cable up to 300' allowing for optimum placement in different system environments. It also features a class 2 transciever with a 49' (15m) range and the Advanced Audio Distribution Profile (A2DP) ensures high quality stereo audio.

The BTC-1 serves as a streamlined termination point for power, audio and 12VDC trigger connections to the host audio system.

Standard Features
- Add Bluetooth audio streaming to a multiroom audio installation
- Remote transceiver for optimum range placement
- Free custom naming software for easy identification

Versandabmessungen 4.9 "(W) x 2.5" (H) x 3.8 "(D)
Versandabmessungen (12,5 x 6,4 x 9,5 cm)
Liefergewicht 0,4 £ (0,2 kg)
Audio-Eingänge 2 Cinch-
CAT-5e-Anschluss RJ-45 (T568A Standard)
Frequenzbereich 2,400-2,483.5 MHz
Max Kabellänge 300 '(CAT-5) BTC-1x bis BTC-1
Max Kabellänge 25' (RCA-Kabel) BTC-1-Controller
Spannungsversorgung (en) BTC-1X Fern Transceiver: von BTC-1 über CAT-5 zugeführt
Spannungsversorgung (en) BTC-1 Termination Box: 12VDC 300mA
Trigger-Eingang (e) 12 VDC
Trigger-Ausgang (n) 12VDC 100mA Max
