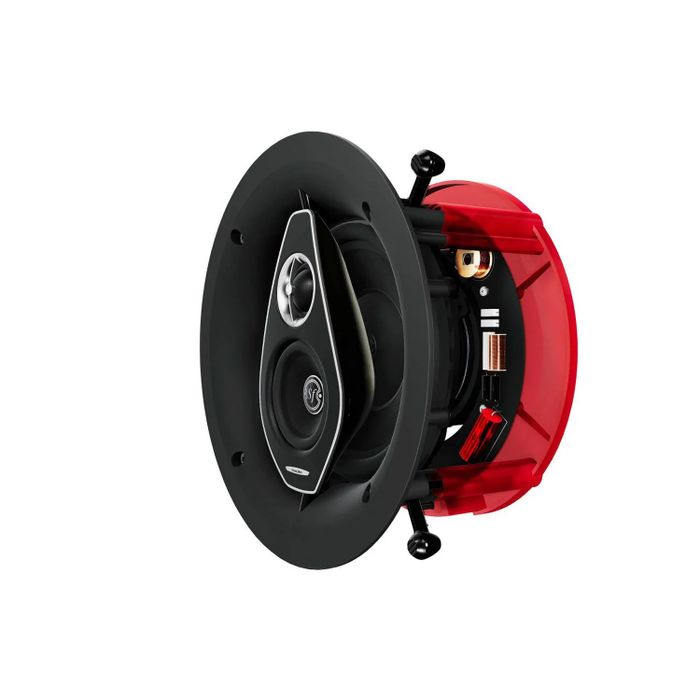

Sonus Faber PC-683 (Weiß)

Einbaulautsprecher
Decken-Einbaulautsprecher ink. rund & eckig Abdeckgitter
Außenrahmen: 283 mm
Lochausschnitt: 257 mm
Einbautiefe: 142 mm
Versand: jetzt vorbestellen
Geschäft: jetzt vorbestellen
825,00 € / Stk.
    Ihr Vorteils-Paket
    Gratisversand für Deutschland und Österreich
    Dein HeimkinoWelt BONUS
    Fachhandels-Beratungs-Hotline +
    +43(0)1 6982317 +
    Produktberatung per E-Mail +
    Installations- und Lieferservice +
    Hilfestellung bei Garantieabwicklung +
    mehr als 20 Jahre Erfahrung +
    Details

    PALLADIO: THE NEW CUSTOM INSTALLATION

    Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.

    THE VOICE OF SONUS FABER

    It's timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.

    LEVEL 5 AND SONETTO: HARMONIC INTEGRATION

    The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).

    EASY TO INSTALL AND CUSTOMIZE

    All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models include an additional square grille, to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.

    Technische Daten
    SPECIFICATIONS
    Type PC-683
    Loudspeaker system 3 way in-ceiling system. Infinite baffle
    Tweeter DADTM driver 29 mm / 1.1 ’’
    Midrange 80 mm / 3.1 ’’
    Woofer/Midwoofer 200 mm / 8 ’’
    Drone Cone -
    Crossover frequency 1,400 - 3,500 Hz
    Frequency response 45 – 25,000 Hz (-6dB)
    Sensitivity (2.83V/1m) 90 dBSPL
    Nominal impedance 4 Ω
    Suggested amplifier power output (*) 40 – 200 W Undistorted signal
    Frame outer Ø 283 mm / 11.1 ‘’
    Cut out Ø 257 mm / 10.1 ‘’
    Depth behind surface 142 mm / 5.7 ‘’
    Protrusion 13 mm / 0.51 ‘’
    Included in the box Bezel-Free round magnetic grille
    Additional fittings Bezel-Free square magnetic grille
    Pre-mount kit -
    Net Weight 4,56 kg / 10 lb
    Square grille Net Weight 0,44 kg / 0.97 lb
    Pre-mount Kit Net Weight 0,34 kg / 0.74 lb
    Premium Kit Net Weight -
