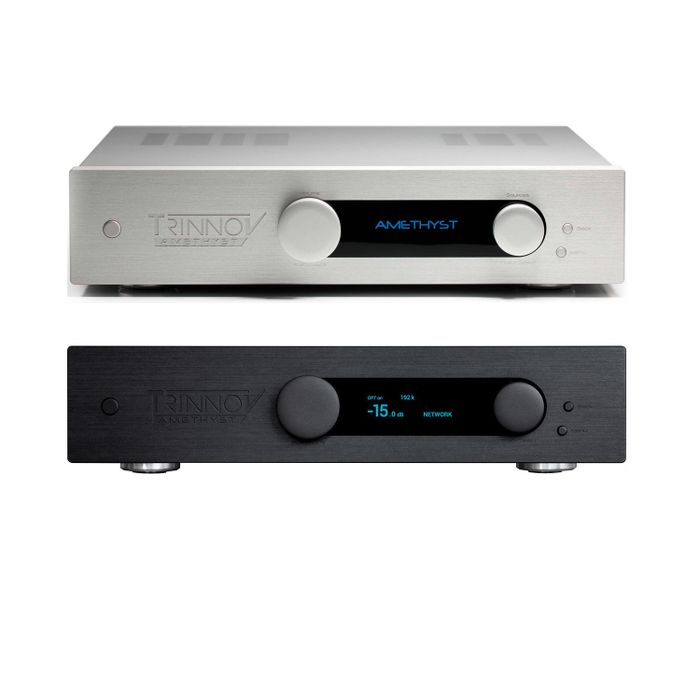

Trinnov Amethyst

High-End Vorverstärker, Profi-Raumkorrektur
11 sources Highend Preamplifer,ADC/DAC,network Renderer, 2-ways active crossovers, Room/Speaker Optimizer included True 24bits/192k operations, 4 output processing channels., builtin Wifi.
Versand: 1-2 Tage
Geschäft: 1-2 Tage
UVP 11.100,00 €
ab 11.100,00 € / Stk.
    Auf Lager
    Nur %1 übrig
    SKU
    20476
    Ihr Vorteils-Paket
    Gratisversand für Deutschland und Österreich
    Vorführbereit
    Dein HeimkinoWelt BONUS
    Fachhandels-Beratungs-Hotline +
    +43(0)1 6982317 +
    Produktberatung per E-Mail +
    Installations- und Lieferservice +
    Hilfestellung bei Garantieabwicklung +
    mehr als 20 Jahre Erfahrung +
    Details

    INTRODUCTION

    True concentrate of advanced technologies, the Amethyst is Trinnov’s high-end stereo flagship.

    It combines an 11 sources preamplifier with built-in Room/Speaker Optimizer, Trinnov’s innovative HybriD Phono Preamp, a Network Renderer, a 24 bits/192kHz DA Converter and a 2-ways intelligent active crossovers engine.

    The Amethyst also features builtin Wifi connectivity for simplified operations. The perfect centerpiece of any traditionnal or modern Hifi Installation.

    11 SOURCES HIGH-END PREAMPLIFIER

    • 2 balanced analog sources on XLR connectors
    • 1 single-ended analog source on Cinch connectors
    • 1 single-ended analog source on Cinch connectors switchable to Phono
    • 2 AES/EBU digital sources on XLR connectors
    • 2 Coaxial S/PDIF digital sources on Cinch connectors
    • 2 Optical S/PDIF digital sources on TosLink connectors
    • 1 High-Resolution UPnP Network Source (Ethernet, WiFi)

    MM PHONO PREAMP

    Trinnov HybriD Technology: innovative RIAA filter, combining an analog circuit for the low-end and a dedicated digital algorithm for the high frequencies.

    HI-RESOLUTION NETWORK RENDERER

    • High Resolution file support
    • UPnP Protocol (DLNA Compatible Digital Media Renderer)
    • Supported formats: WAV, AIFF, OGG, FLAC up to 24 bits / 192 kHz

    AD/DA CONVERTERS

    • A/D signal-to-noise ratio: 119 dB (A-weighted)
    • D/A signal-to-noise ratio: 118 dB (A-weighted)
    • High Performance jitter attenuation (better than 50dB above 100Hz)
    • Supported A/D sampling rates: 44.1 / 48 / 88,2 / 96 kHz
    • Supported D/A sampling rates: 44,1 / 48 / 88,2 / 96 / 176,4 / 192 kHz
    • Word Clock Input/Output

    Technische Daten
    HIGH PERFORMANCE AUDIO
    ADC RESOLUTION / SAMPLING RATE 24 bits/96 kHz
    DAC RESOLUTION / SAMPLING RATE 24 bits/192 kHz
    A/D SIGNAL-TO-NOISE RATIO 119 dB (A-Weighted)
    D/A SIGNAL-TO-NOISE RATIO 118 dB (A-Weighted)
    CLOCK / JITTER Variations under 25ps are recovered, jitter attenuation superior to 50 dB is achieved above 100Hz
    POWER SUPPLY Independant for audio and processing sections
    SAFETY COMPONENTS AntiPop relays on each analog output
    DESIGN AND ASSEMBLY All Audio boards designed and manufactured by Trinnov in France
    CONNECTIVITY
    ANALOG I/O 2 single-ended channels inputs via 2 x cinch (47k Ohms)
    ANALOG I/O 2 single-ended channels line/phono intputs via 2 x cinch (47k Ohms)
    ANALOG I/O 4 single-ended channels outputs via 4 x cinch (100 Ohms)
    ANALOG I/O 4 balanced channels inputs via 4 x XLR (20k Ohms)
    ANALOG I/O 4 balanced channels outputs via 4 x XLR (100 Ohms)
    AES I/O 4 channels inputs via 2 x XLR (110 Ohms)
    AES I/O 4 channels outputs via 2 x XLR (110 Ohms)
    SPDIF 4 channels inputs via 2 x cinch (75 Ohms)
    SPDIF 4 channels outputs via 2 x cinch (75 Ohms)
    SPDIF 4 channels inputs via 2 x toslinks
    WORD CLOCK 1 input via BNC (75 Ohms)
    WORD CLOCK 1 output via BNC (75 Ohms)
    PROCESSING SECTION
    PROCESSOR Intel Dual-Core 1,8 GHz
    DATA WIDTH 64 bits, floating point
    RAM 1 Go DDR3
    STORAGE Flash Drive 1 GB
    COOLING SYSTEM Custom heat sinks + additionnal slow fans
    PHYSICAL CHARACTERISTICS
    Chassis 2U
    Power supply 240V AC / 50-60 Hz. Option: 130V AC
    Consumption 90 W max.
    Weight ∼10kg
    Environnemental conditions:  – Operating: 0°C – 40°C (32°F – 104°F)
    Environnemental conditions:  – Humidity: 20% – 80% relative humidity (without condensation)
