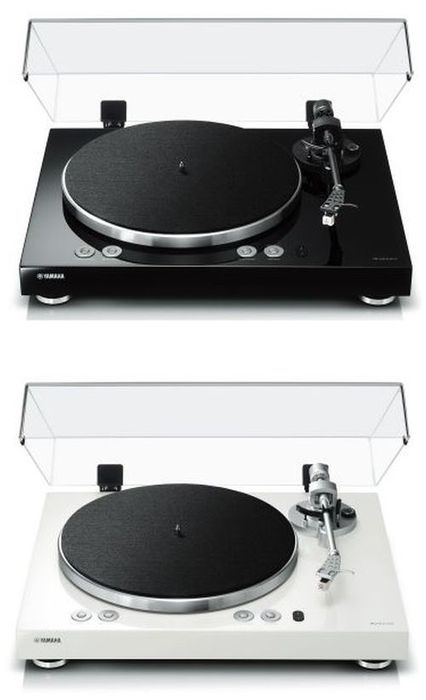

Yamaha VINYL 500

Plattenspieler mit MusicCast
Antriebstyp: Riemen, Umlaufgeschwindigkeit: 33/​45rpm, gerader Tonarm
Integriertes WLAN, Integriertes Musik-Streamingybr/>Abmessungen (BxHxT): 450 x 136 x 368 mm, Gewicht: 5,7kg
Versand: lagernd
Geschäft: lagernd
bis zu -21% UVP 699,00 €
ab 549,00 € / Stk.
Fachhandels-Beratungs-Hotline +
+43(0)1 6982317 +
Produktberatung per Mail +
Installations- und Lieferservice +
Hilfestellung bei Garantieabwicklung +
mehr als 16 Jahre Erfahrung +

MusicCast VINYL 500

Dieser Schritt in die Zukunft zollt der Vergangenheit Tribut. Unser wegweisender kabelloser Plattenspieler wendet sich an eine neue Generation von Audiophilen. Durch die MusicCast Multiroom-Fähigkeiten erstreckt sich die Freude an Ihrer Plattensammlung auf alle Räume des Hauses.



  • Durch die kabellose Verbindung mit jeder MusicCast Komponente entsteht eine lückenlose Hörerfahrung.
  • Der gerade Tonarm trägt zum transparenten und offenen Klangbild bei.
  • Riemengetriebener Plattenteller
  • Integriertes Musik-Streaming
  • Integriertes WLAN mit 2,4-GHz- und 5-GHz-Kompatibilität
Network Section
File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
Ethernet Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes
Bluetooth Section
Version/Profile Ver. 4.2 / A2DP, AVRCP
Audio Codec SBC, AAC
Maximum Communication Range 10 m / 32.8 ft. 10 in. (without interferene)
Turntable
Drive Method Belt drive
Motor DC motor
Rotation Speed 33-1/3 rpm, 45 rpm
Rotation Speed Variation ±2%
Wow And Flutter 0.2%
Platter Aluminium die-cast (Diameter 30 cm)
Output Level 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Signal To Noise Ratio 67 dB or higher (A-weighted, 20 kHz, LPF)
Tonearm
Tonearm Static balance straight tonearm
Effective Arm Length 223.5 mm
Overhang 19 mm
Stylus Pressure Adjustment Range 0-4 g
Acceptable Cartridge Weight 15.5-19 g (including headshell)
Attached Cartridge
Cartridge Type MM type
Output Voltage 2.5 mV (1 kHz, 3.54 cm / sec)
Stylus Pressure 3.5 ± 0.5 g
Cartridge Weight 5.0 ± 0.3 g
Cartridge Height 17.0 ± 0.7 mm
Head-shell Weight 10 g (including screws, nuts and wires)
Audio Specifications
Output Terminal RCA: 2 (PHONO, LINE)
Output Level 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
Dynamic Range 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency Response Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB)
General
Power Consumption 6 W
Eco-Standby (reference date) 0.3 W
Standby Power Consumption 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired)
Dimension (W×H×D) 450 x 136 x 368 mm; 17-3/4” x 5-3/8” x 14-1/2”
Weight 5.7 kg; 12.6 lbs.
